PIVOFLEX SCREEN
The advantages of the SCREEN system
No collection box for the canvas
The screen features minimal profiling and lacks a collection box, providing an unobstructed panoramic view and adapting to any type of opening.
10-years warranty
We offer a 10-year warranty on aluminum profiles and system components. Our technical support is provided by the company’s top technicians, and we proceed with replacing any necessary components to ensure the system operates smoothly when needed.

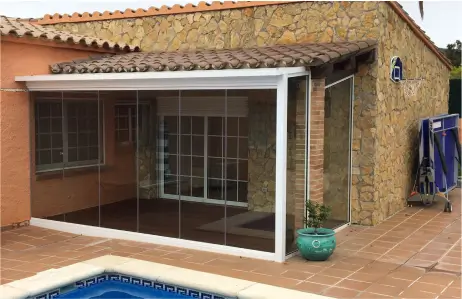

Designed for our PIVOT and SLIDE systems.
High-quality materials and components are specially developed for PIVOT and SLIDE glass curtain systems. Moreover, these systems are compatible with all panel opening configurations.
Thread adjustment system
The upper rail of the mosquito screen features a threaded adjustment system, allowing for even distribution of the pleated mesh across the entire width of the opening.

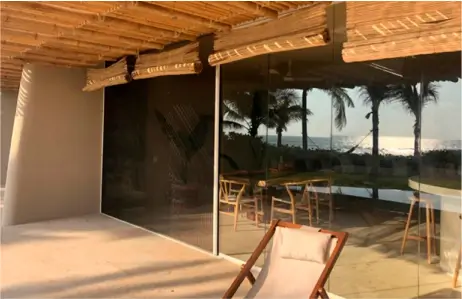

System customization
The profiles of the mosquito screen can be customized and tailored to fit the opening and the glass bay using options such as RAL color powder coating, anodization, or wood grain finishes.
3D VISUALIZATION MODEL
Explore our glazing system through our 3D visualization model. This interactive feature allows you to view the configurations and bearing options of this glazing system, providing an immersive experience before installation.
SPIN AND ZOOM
Bottom rail
With a height of 8 mm, it can be customized in the color of the building or floor.
ZIG-ZAG profile
Vertical profile that enables the opening and gathering of the screen.
Pleated canvas
With a cell size of 1.5 mm x 1.5 mm, providing guaranteed protection against all types of insects.
U-shaped finishing profile
Ensures the efficient closure of the system and gives it a finished appearance.

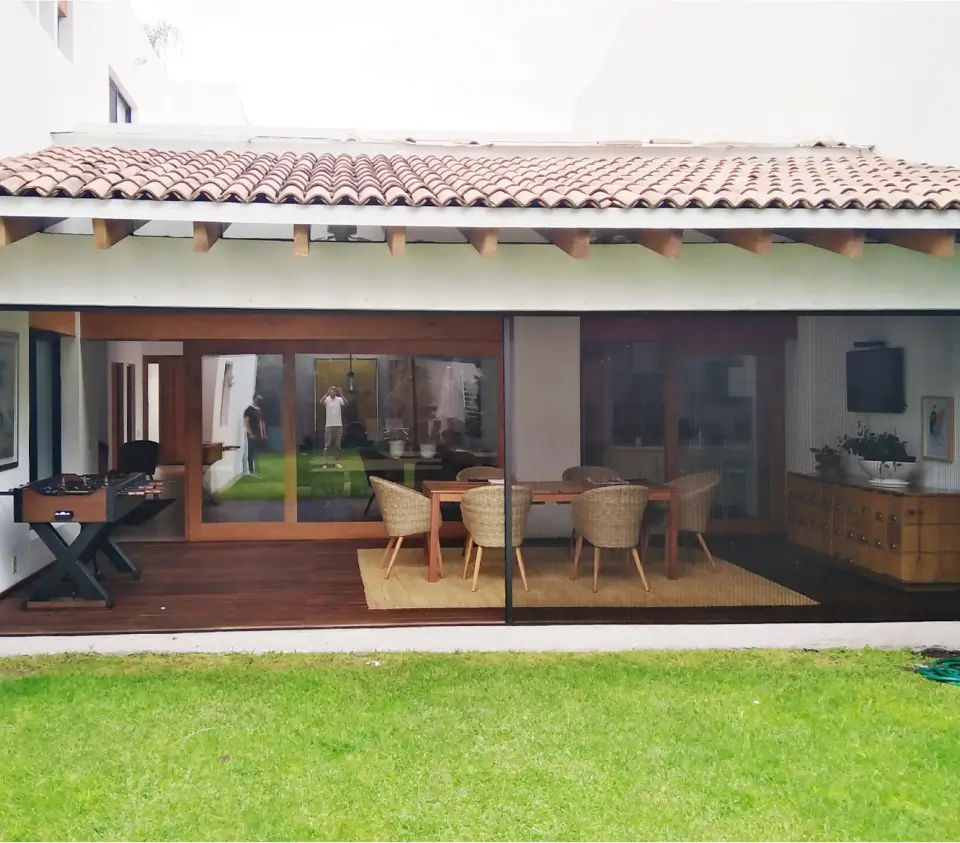

Maximum construction dimensions
Maximum height: 3000mm (118in)
Maximum width for side opening: 4000mm (157in)
Maximum width for center opening: 8000mm (315in)
Maximum surface area: 12 m2
Technical specifications
Maximum wind load: 37.5kg
Wind load resistance class: 3
Characteristics of pleated fabric
Fabric material: High-strength polypropylene
Thread material: Kevlar
Protection class: Protects against all types of insects
SCREEN system opening configurations
Configuration with side opening from right to left

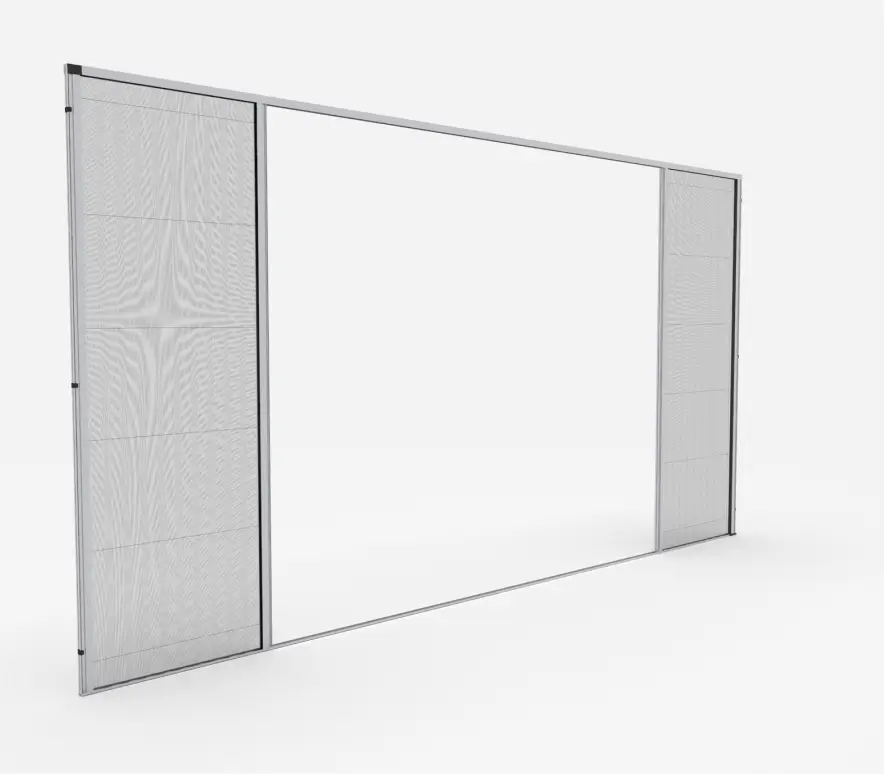

Configuration with central opening
Configuration with side opening from left to right
